나가오카(Nagaoka) JT-80 LB/BK MM 카트리지입니다.

고해상도와 박력있는 사운드로 최고의 가성비를 발휘하는 나가오카(Nagaoka)사의 중급 mm 카트리지입니다.
Jeweltone 시리즈는 동사 창립 80주년 기념모델로 70년대에 황금기를 구가하던 Jeweltone 브랜드를 특별히 부활시켜
나가오카의 독자적인 기술력을 투입시킨 모델입니다.
정교하면서 탁월한 트래킹능력, 뛰어난 밸런스와 매력적인 고역으로 다양한 장르의 음악을 재생하는데 손색이없이 우수한 아나로그 사운드를 감상할수 있는 카트리지로 추천할 수 있습니다
출력 레벨은 JT-80 LB 5mV JT-80 BK 3mv의 MM형 카트리지입니다.

신품입니다.
판매가는 JT-80 LB 27만원, JT-80 BK 65만원입니다.
광주 직거래 가능하고 전국택배 가능합니다.

010-8615-1858
[email protected]

NAGAOKA JT80LB (JT-80LB) CARTRIDGE - Limited 80th Anniversary special edition cartridge

Nagaoka is a world-famous manufacturer of record needles, celebrating its 80th anniversary this year. The MP cartridge, which has been used around the world for many years, has been redesigned and the new MM cartridges JT-80/JT-1210 have been released. We will continue to support the analog record culture that will be loved by record lovers all over the world.

Design Points

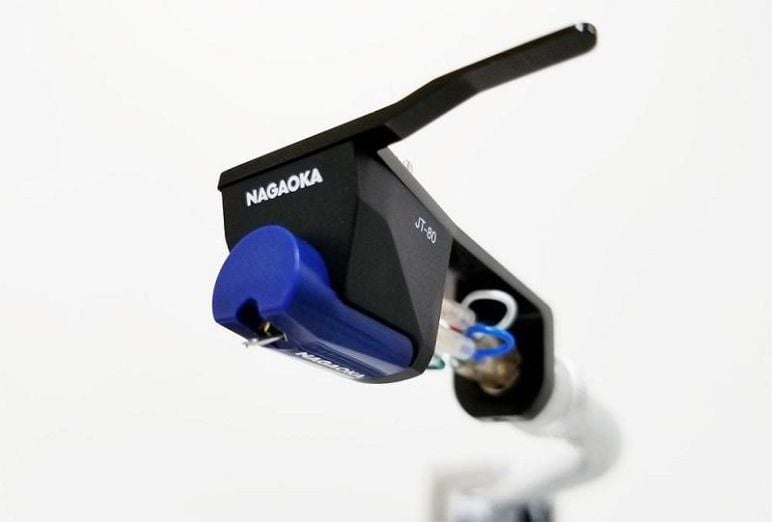

1. Continuous design from tonearm to the stylus tip. The slanted front panel allows for easy viewing of the tip and easy stylus replacement.
2. The small cylinder on the mounting surface makes it easy to put the stylus on and the light body plays sound as it slides on the board.
3. The upper part is blocky to match with the tonearm, contrasting with the columnar shape of the stylus.

The slim and simple design gives a sense of continuity from the tonearm to the stylus tip. Reducing the number of parts leads to a reduction in vibration. In addition, the bare screws that join the head shell on previous products have been integrated inside the body to reduce exposure and resonance. Besides traditional listeners, these evolutions are also oriented well towards modern pop and jazz, supported by a wide range of genres.

Size：Width 18.1mm X Length 26.2mm (Terminal Pin included）X Height 18.5mm、Weight 6.7g Materials: ABS resin, Comparing with our long seller, MP (Moving Permalloy) type cartridge 8g weight Reducing weight by using cylindrical structure、as a MM (Moving Magnet) cartridge , succeeded in improving the sound quality.

With a worldwide following, this product combines ease of use and design at a high level. Designed to enhance the visibility of the stylus and ease of operation when replacing The thin handle designed for dropping the stylus on the record gently and the simple construction of the body were highly praised. The functional design and the high perfection of each component will satisfy the users as well.

In order to get closer as possible to the ideal frequenxy response, Nagaoka adjusted the hardnss of the damper rubber and core materials. You can feel the difference between the MP and MM. While the MP and MM have the same power generator, the structues of the cantilever are different. Also by selecting and adjusting the damper rubber and stylus tip, Nagaoka found the best balance

- Output voltage: 5.0mV（5㎝/sec）
- Frequency response<: 20Hz ～ 20kHz
- Channel separation: 23dB(1kHz)
- Channel balance <1.5dB
- Recommended Load Impedance: 47kΩ
- Recommended Load Capacitance: 100pF
- Cantilever: Aluminum alloy
- Stylus tip: 0.4×0.7mil
- Stylus pressure: 1.3 ～ 1.8g
- Cartridge weight: 6.9g
- Dynamic Compliance: 7.3×10-6cm/dyne
- Replacement Stylus：JTS-80BL

Nagaoka JT80BK Specifications
　　　
- Output voltage: 3.0mV（5㎝/sec）
- Frequency response: 20Hz ～ 20kHz
- Channel separation: 25dB(1kHz)
- Channel balance: <1.5dB
- Recommended Load Impedance: 47kΩ
- Recommended Load Capacitance: 100pF
- Cantilever: Boron
- Stylus tip: 0.4×0.7mil
- Stylus pressure: 1.3 ～ 1.8g
- Cartridge weight: 6.7g
- Dynamic Compliance: 7.3×10-6cm/dyne
- Replacement Stylus：JTS-80BK
